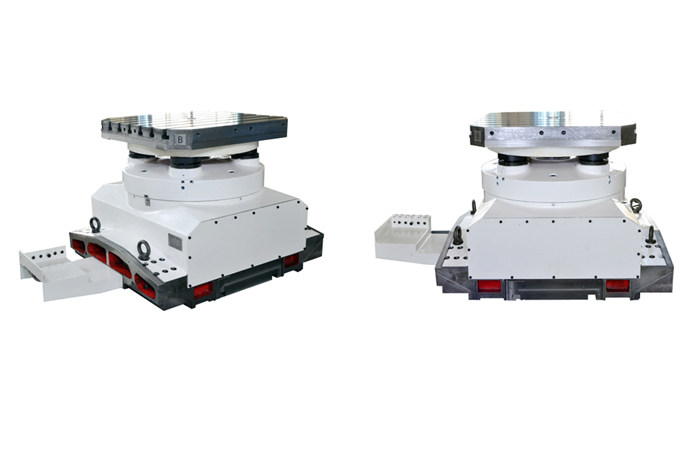

CNC horizontal rotating workbench
Mainly used for horizontal machining center machine tool. Cooperate with the automatic exchange workbench to realize fast exchange, improve the processing efficiency and form a high-efficiency dual workbench system. It can also be used as a single rotary table.
High-precision dual lead worm gear pair is adopted, with accurate division, small back clearance and convenient and reliable side clearance adjustment. The clearance can be readjusted after long-time wear to restore the factory precision.
The worm wheel and worm are processed according to the national standard of Grade 3 precision. The worm wheel is made of high-performance alloy steel and the worm wheel is made of tin bronze with good abrasion resistance.
Grating turntable continuous indexing, minimum indexing accuracy of 0.001° It can realize the machining of complex surface.
Precision end gear plate shall be adopted for positioning of dental table, with the minimum division unit of 1º Good rigidity and high repeated positioning accuracy.
The turntable is locked by full circle hydraulic pressure, with large braking torque, and can withstand large cutting torque.
Four conical positioning seats are used for table positioning, with accurate and reliable repeated positioning.
The main slewing bearing adopts large-diameter radial bearing, which greatly increases the rigidity of the disc surface and can bear the radial and axial heavy cutting force.
The interface size can be reserved according to the servo motor selected by the user.
The table top can be designed as square or round, T-shaped groove or screw hole, sliding guide rail or taper pin positioning clamping type according to the user's requirements.
