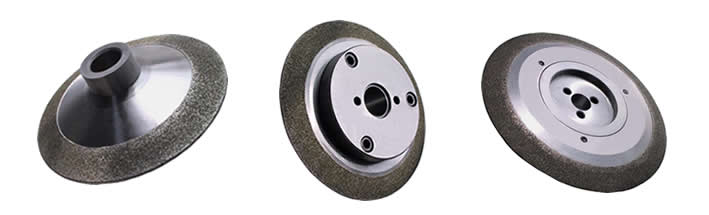

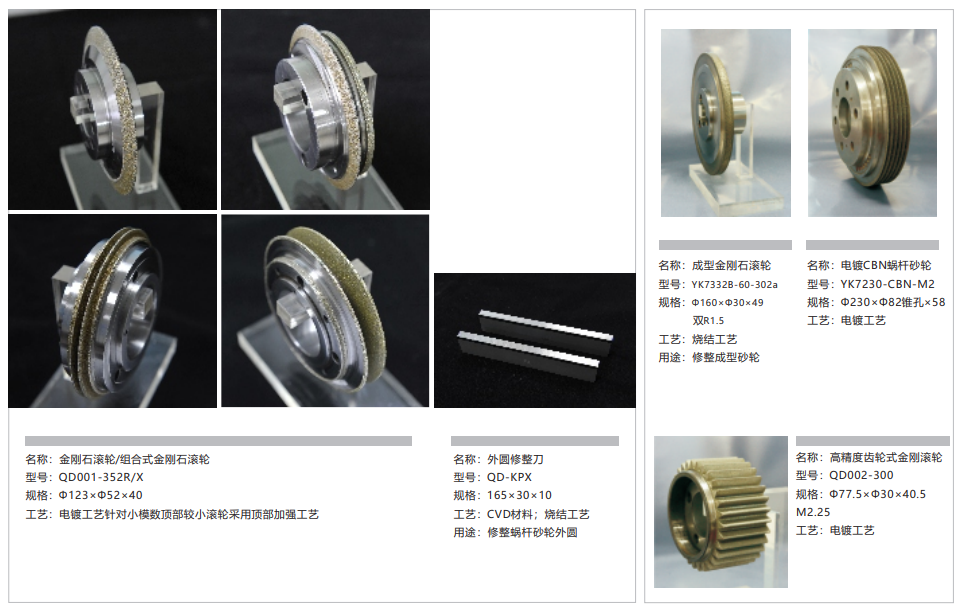

1、 Diamond Roller Products:
Diamond roller of worm gear grinding machine can be matched with:
(1) YK (E) 72 series worm grinding machine manufactured by Qinchuan Machine Tool Co., Ltd.
(2) Double taper roller for imported machine tool:
Leshall (RZ260, etc.): Roller Part No.: QD001-352R
KAPP: Roller Part No.: QD001-352K
Liebherr: Roller Part No.: QD001-352L
Griessen: Roller Part No.: QD001-364
(3) Leishour AZA, NZA, RZ301, RZ400 and other gear grinding machines; Fssler gear grinding machine.
(4) Csepel and the former Soviet grinding machine.
(5) Double cone roller for Y7232 and H215 series gear grinding machine of Shanghai Machine Tool Group Co., Ltd.
(6) Tooth root grooving roller: cutting worm grinding wheel groove root, tooth root rolling wheel, etc.
The forming grinding roller can be matched with:
(1) Qinchuan YK73 series (single/double R1/R2/R5);
(2) Nils forming gear grinding machine (single R2);
(3) Various special orders (R0.3/R0.5 tip CVD);
Other new products:
Diamond roller for rotor groove grinder and stator grinder, etc.

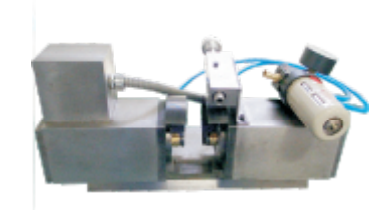

2、 Equipped with Qinchuan machine tool gear grinding machine finisher (new type):
QD004 series:
The dresser of the worm grinding wheel gear grinding machine is a very critical component for finishing the worm grinding wheel. Based on years of experience accumulated in contact with users, our company has improved the design of the dresser to improve the finishing effect of the worm grinding wheel! The worm grinding wheel gear grinding machine uses a pair of single-cone diamond rollers driven by two built-in electric shafts to trim the grinding wheel, or a double-cone roller can be installed. The advantages are high finishing efficiency and flexible and convenient adjustment.
3、 Certificate of Patent
