• High-precision worm gear pair

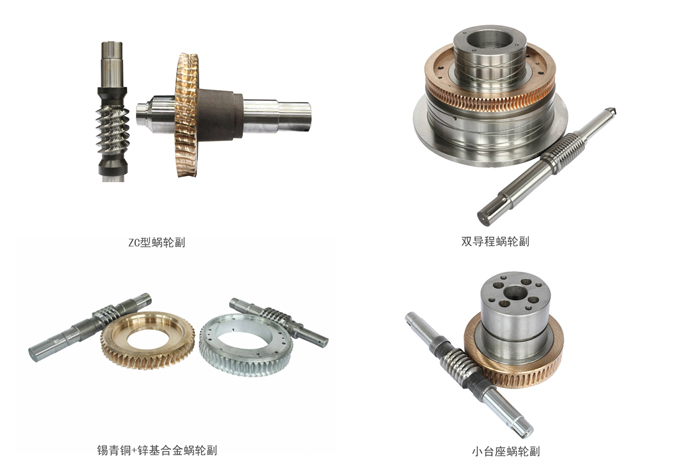

    The machining of worm gear and worm gear of Qinchuan Gear Drive Plant starts from the high-precision worm gear pair of indexing workbench of gear grinding machine, and gradually expands to be applied to elevator traction machine, metallurgical machinery, heavy machinery, etc. It can process double lead precision index worm gear pair of common cylindrical worm gear pair, multi-head precision worm gear pair, split worm backlash worm gear pair and double worm backlash worm gear pair. The gear shapes include ZK, ZN, ZI, ZA and ZC types. The worm wheel is made of tin bronze, zinc base alloy, cast iron, nylon and other materials. The machining process adopts gear hobbing, shaving and honing.

    The main processing and inspection equipment include: Qinchuan YK7332 forming gear grinding machine, Klinkberg HNC35 worm grinder, Pufa P600/P800/P1000 precision gear hobbing machine, Liebherr L1200 precision gear hobbing machine, Klinkberg P100 gear measurement center, Klinkberg PWS250 hob tester and Klinkberg PSR500 dynamic worm gear pair tester.




    Get More Information
  • Instruction Manual
  • Training
  • Fixture
  • Tool Bit
  • Software

      Maximum machining diameter of worm gear&; 1200mm

      Max. machining modulus 16mm

      Precision of worm gear pair GB10089-88 Standard Grade 3
