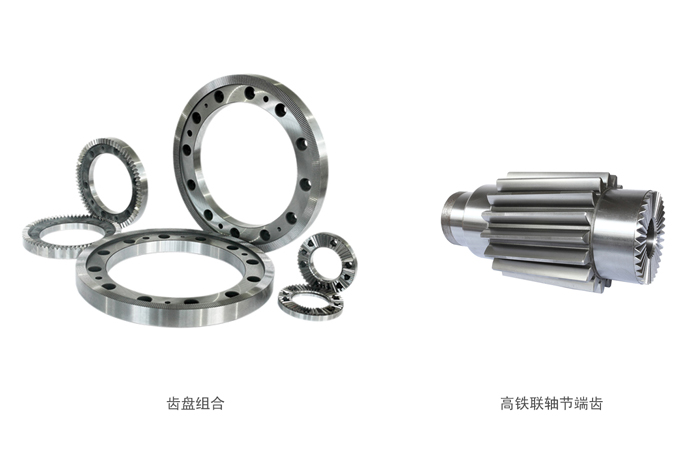

High-precision end gear plate
End gear is a kind of precision index element with automatic centering function. Widely used in machining centers, CNC machine tools, automatic tool holders, CNC turntables and other rotating mechanisms of precision indexing. The high-precision end gear disc produced by our company has soft tooth surface and hard tooth surface. Special machine tool is used to grind the teeth, with high indexing accuracy, stable repeated positioning, good abrasion resistance and large bearing capacity. It not only provides standard model series, but also can process three-piece sets, external teeth of end toothed belt and other special customization.
Get More Information
- Instruction Manual
- Training
- Fixture
- Tool Bit
- Software
Diameter range&Olash; 10 – Ø 800mm
Teeth 60, 72, 120, 144, 180, 240, 360

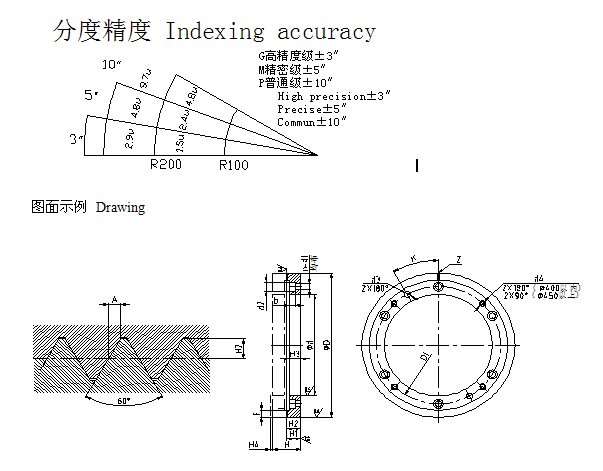

Division accuracy Class 2 "
